6 Zones Industrial Metal Detector AJ-06

Product Categories

Shenzhen Anji Electronices Technology Co.,Ltd

Contact Now

Model Number : AJ-06

Certification : CE,ISO

Place of Origin : Guangdong,China

MOQ : 10pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Delivery Time : 5 DAYS

Packaging Details : G.W 70KGS

Contact Now

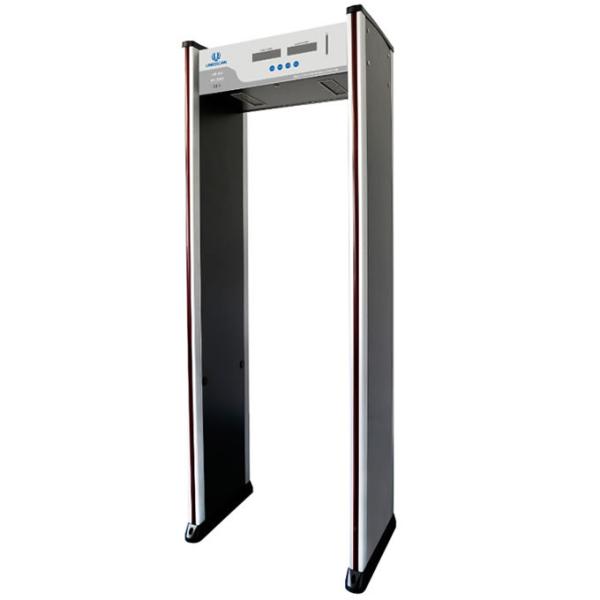

AJ-060 Walk through metal detector (6 zones)
Parameters
Power Supply	AC85V-264V / 47.5-60Hz
Working temperature	-20℃--+50℃
Working Frequency	4KHZ—8KHZ
Standard External size	2200mm(H)X800mm(W)X580mm(D)
Standard Internal size	2010mm(H)X700mm(W)X500mm(D
Package size for door panels	2260650260mm *1ctn
Package size for control unit	780390250 mm*1ctn
Gross weight	70KG
Characteristic & Function
Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones
Sensitivity adjustable: Each zone has 100 sensitivity level
Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design,easy for maintenance and replacement
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)
Use domain
Exhibition center, Electronic Factory, Bank, P

6 Zones Industrial Metal Detector AJ-06 Images
